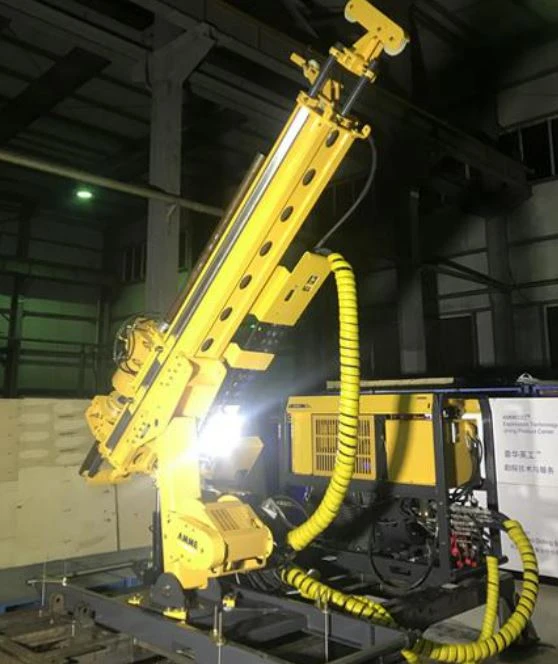

Underground Core Drilling Rig UMX1000 UMX800

Qauv: UMX1000 / UMX800

Drill Depth Peev Xwm:

BQ (UMX1000/UMX800): 1200m / 960m

NQ (UMX1000/UMX800): 960m / 760m

HQ (UMX1000/UMX800): 620m / 520m

Rig Tag Nrho Qhov hnyavNyhav: 2200Kg / 2100Kg

Lub peev xwm tob yog nyob rau hauv daim ntawv thov drilling thiab qhov chaw nyob.

Nta
* Classic Canadian- keeb kwm 12HH chuck thiab rotation unit (UMX1000) muab kev cia siab rau kev ntseeg tau zoo thiab kev ua tau zoo hauv kev lag luam. Lub gearbox sib xyaw ua ke yog ob- nrawm thiab hloov pauv tag nrho- tswj nrog lub tshuab lubrication ywj siab uas muab kev tswj xyuas kom muaj zog thiab ua haujlwm ntev dua.
* Lub pas nrig tuav, uas yog synchronized tag nrho nrog lub chuck, yog ua los ntawm hydraulic lub tog raj kheej (qhib) thiab lub neej ntev Nitrogen caij nplooj ntoos hlav (kaw) kom ntseeg tau siab clamping quab yuam thiab ceev ceev kaw nrog rau kev txhim kho kev tswj thiab txo cov kev xav tau kev pab.
* Lub nruj tab sis lub teeb yuag pub ncej tiv thaiv kev pheej hmoo ntawm kev sib tsoo. Nws yog ib qho yooj yim rau phau ntawv muab tso rau ntawm ib qho ntawm ob peb lub ntsiab lus tuav.
* Cov tswj vaj huam sib luag yog tsav-hydraulic-tswj tsim nruab nrog cov neeg siv- tus phooj ywg interface thiab ntsuas ntsuas. Cov nyees khawm thiab cov pob qhov rooj yog ua tau zoo rau kev nplij siab ntawm tes thiab kev ua haujlwm raug muab kev tswj xyuas zoo ntawm cov rig, nrog rau kev txhim kho kev nyab xeeb thiab kev tsim khoom.
* E-Nres cov nyees khawm ntawm lub vaj huam sib luag tswj thiab lub laum rig kom paub tseeb tias qhov kev kaw nrawm nrawm tawm tsam qhov xwm txheej tsis raug.

Lub zog

Tus qauv fais fab fais fab yog hluav taws xob, uas haum rau cov kev siv hauv av.
Diesel version fais fab pob kuj muaj raws li daim ntawv thov tshwj xeeb xav tau.
Lub cev muaj zog: 90KW / 75KW
Main twj tso kua mis max flow: 160 l / m
Lub ntsiab twj tso kua mis max siab: 300 Bar
Kev pabcuam twj tso kua mis max flow: 40.5 l / m
Kev pabcuam twj tso kua mis max siab: 300 Bar
Qhov hnyav: 980Kg
LxWxH: 1845x790x1380 mm

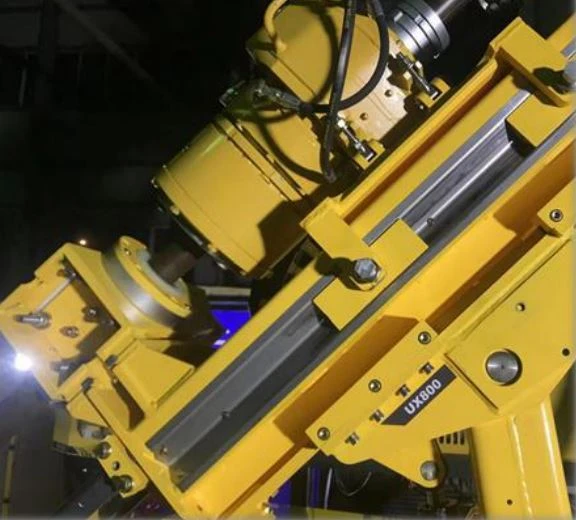

Pub Ncej

Pub ntev: 1800mm lub tog raj kheej.
Pub ncej ntev: 2900 (mm)
Extension mast ntev: 2000 (mm)
Pub zog: 89 (kN)
Rub lub zog: 89 (kN)
Pub ceev: 0.9 (m / s)

Qws Holder

Tus pas tuav yog hydraulically qhib thiab roj-siab kaw.
Nyob rau hauv cov ntaub ntawv ntawm poob ntawm hydraulic siab lub pas nrig tuav kaw instantly. Cov roj siab tuaj yeem saib xyuas tau yooj yim.
Max pas nrig: 89mm
Pob (tsis muaj lub puab tsaig): 102mm
Pob (tsis muaj npog): 170mm
Axial tuav quab yuam: 45kN

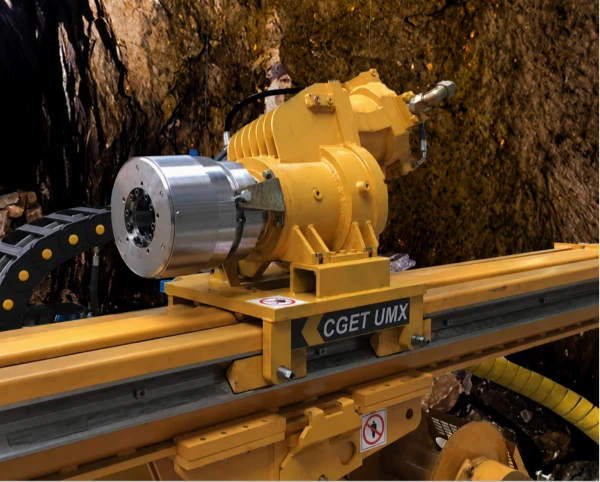

Kev sib hloov Unit

Lub tshuab kev sib hloov muaj peev xwm tuav tau B-H rods (chuck) thiab muaj peev xwm rau P rods (sub). Cov kev sib hloov chav tsev muaj xws li hydraulic lub cev muaj zog, ob lub - ceev gearbox, thiab 12 HH hydraulic chuck. Lub chuck kaw los tuav tus pas nrig los ntawm hydraulic siab, thiab qhib kom tso tawm los ntawm lub caij nplooj ntoos hlav quab yuam.
Lub cev muaj zog: 160cc / 110cc
Max kev sib hloov (rpm): 1400
Max torque (Nm): 2300 Nm / 2100 Nm
Spindle puab txoj kab uas hla (mm): 101
Chuck axial tuav quab yuam (kN): 150

Wireline hoist (nrog WL ​​leveling ntaus ntawv)

Ntev: 1000m, 4.75mm
Rub min: 3600 N (tag nrho nruas)
Pull max: 9700 N (lub nruas khoob)
Kab ceev min: 1.8 m / s (nruas khoob)
Kab ceev max: 4.8 m / s (tag nrho nruas)

Flush Pump (Yeem)

Type : FMC/AW 1122BCD
Kev khiav hauj lwm siab tshaj plaws: 140 l / m
Siab siab tshaj plaws: 70 Bar

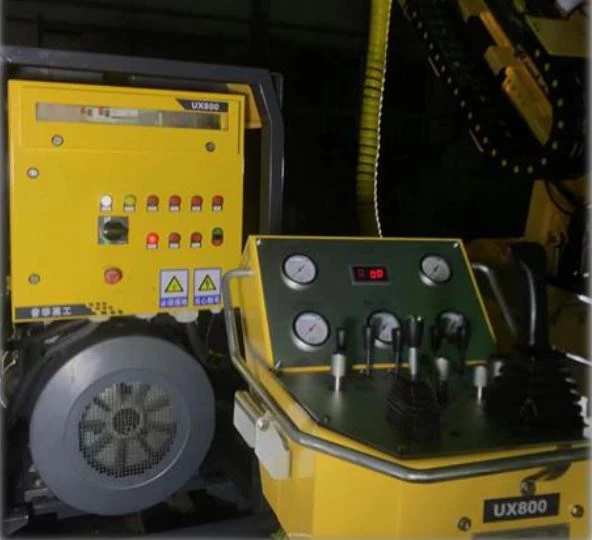

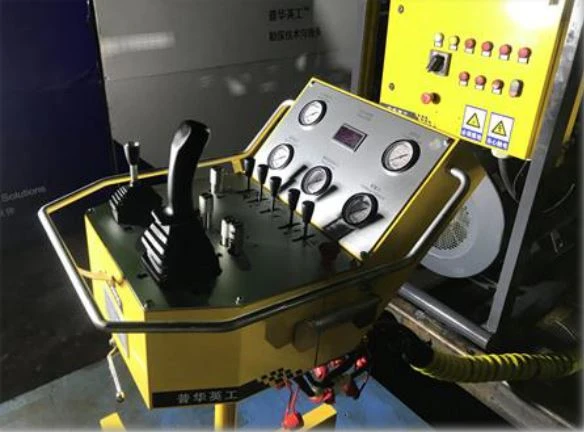

Tswj System

Cov tswj vaj huam sib luag yog tsav-hydraulic-tswj tsim, uas yog compact thiab lub teeb yuag.
PHC tswj vaj huam sib luag yog nruab nrog cov neeg siv - tus phooj ywg interface thiab ntsuas ntsuas.
Cov nyees khawm thiab cov pob qhov rooj yog ua tau zoo rau kev nplij siab ntawm tes thiab kev ua haujlwm raug muab kev tswj xyuas zoo ntawm cov rig, nrog rau kev txhim kho kev nyab xeeb thiab kev tsim khoom.
E- khawm nres tau teeb tsa kom yooj yim nkag mus rau kev ua haujlwm kom muaj kev nyab xeeb.

Kev ntsuas & Qhov hnyav
