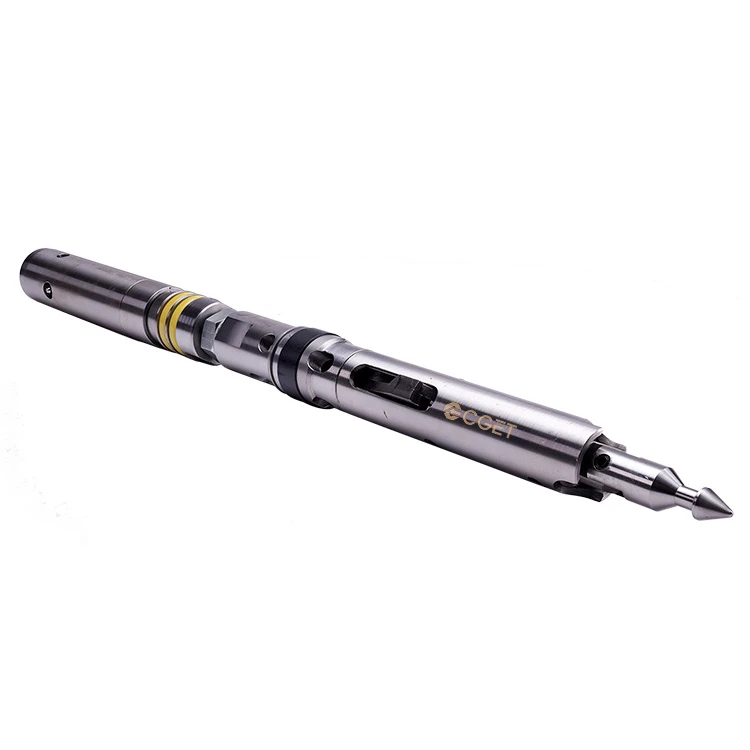

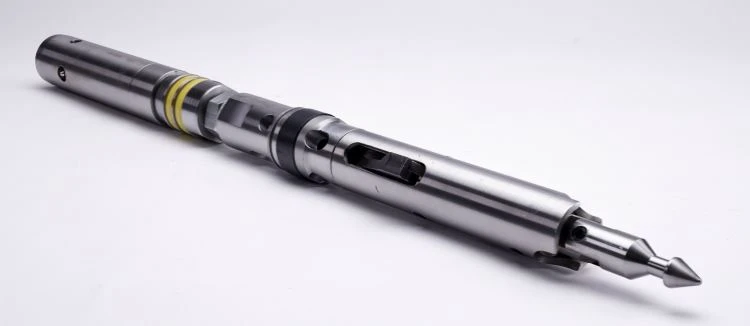

P Core Barrel

WL Wireline core barrels yog qhov zoo tshaj plaws tov rau wireline coring, nws yuav siv tau nyob rau hauv feem ntau drilling tej yam kev mob, Peb muaj peev xwm muab B Core Barrel / N Core chim / H Core chim / P Core chim txheem DCDMA oles ntau thiab tsawg muaj rau koj xaiv.

GEO EQUIP TECH WUXI (CGET) muab plaub tus qauv ntawm cov kab hluav taws xob xaim hluav taws xob:
* Txuj kab hluav taws xob (BNHP);
* Triple tube wireline system (N3 H3 P3);
* Underground wireline system (NU HU);
* Thin Wall wireline system (BTW NTW HTW).

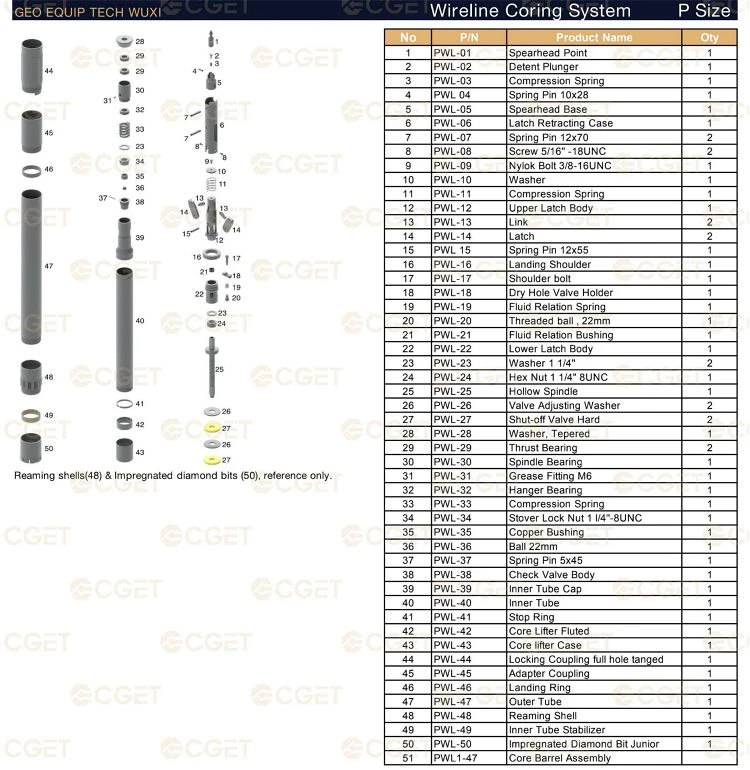

1. Standard Wireline System PWLmuaj cov tub ntxhais chim thiab overshot los ua ke, muaj ib qho tseem ceeb rau lub wireline system, feem ntau peb muab faib ua ob pawg:

Inner Tube Assembly:

1). Lub taub hau sib dhos (#1-39)
2). Sab hauv Tube (#40)
3). Ntiv nplhaib (#41)
4). Tub ntxhais Lifter (#42)
5). Core Lifter Case (#43)

Cov Khoom Tseem Ceeb Nyhav:
1).Head Assembly(#1-39): 29kg
2). Inner Tube Assembly 3m: 43kg
3). Inner Tube Assembly 1.5m: 55kg
4). Core Barrel Assembly 3m (#1-40): 95 kg
5).Core Barrel Assembly 1.5m (#1-40): 119.8 kg

Kev xaiv:
* #40 Inner tube ntawm no nws yog 3m, 1.5m yog lwm txoj kev.
* #47 Lub raj sab nraud ntawm no yog 3m, 1.5m yog lwm txoj hauv kev.
* #44 Xauv Coupling, peb muab kev pabcuam customized.
* # 42 Slotted core liter yog lwm txoj hauv kev.

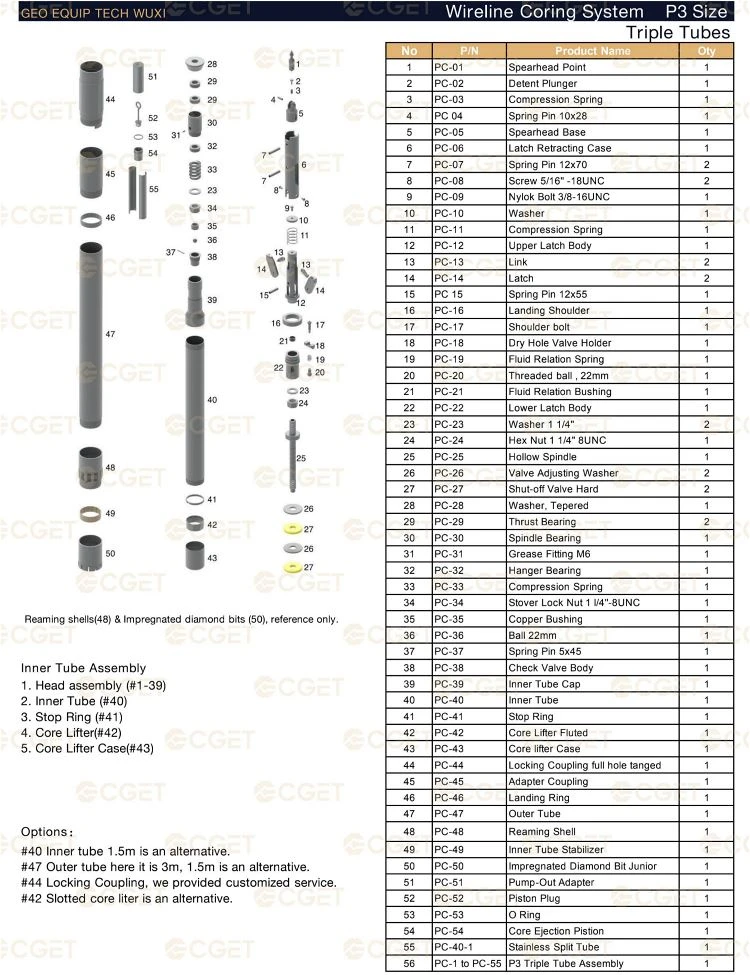

2. Triple Tube Wireline System P3muaj tib lub rooj sib txoos raws li tus qauv P qhov ntau thiab tsawg, tab sis siv lub raj thib peb muab tso rau hauv lub raj sab hauv. Qhov kev tsim no muaj txiaj ntsig zoo rau cov tub ntxhais tseem ceeb rov qab los thaum drilling thee, av nplaum los yog tawg heev, cov raj cais khaws cov tub ntxhais cov qauv zoo kom tsis txhob ntws tawm. Triple tube wireline system tsuas yog muaj nyob rau hauv N3, H3 thiab P3.
