PQ Drill Rod
* High quality alloy steel tubing
* Concentricity sib npaug, ncaj thiab kho cua sov
* Txhua lub raj muaj nyob hauv DCDMA qhov ntau thiab tsawg
Wireline Coring Laum Rods- PQ Laum Rods Qhov Loj Muaj

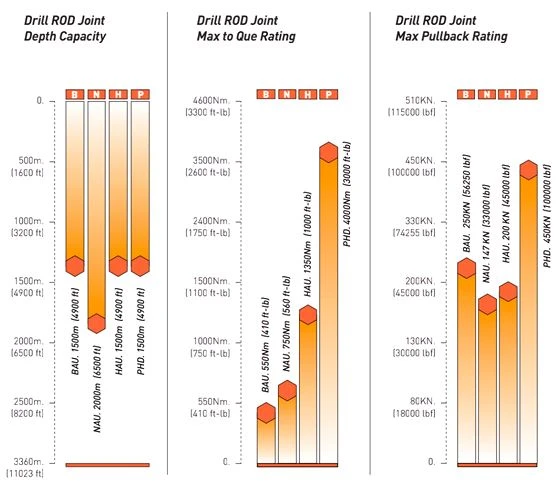

| Kev piav qhia | Code | OD (mm) | ID (mm) | NW (kg) | GW (kg) | Xov Pitch (mm) | Xov Length (mm) | Rated Qhov tob | Max. Rated Torque | ax Tensile Force |
PQ-10' | 20200101 | ￠114.3 | ￠101.6 | 51.8 | 53.04 | 10.2 | 63 | 1500m (5000ft) | 4000 Nm | 45kN (100000 lbf) |
PQ-3M | 20200102 | ￠114.3 | ￠101.6 | 51 | 52.2 | 10.2 | 63 | |||
PQ-5' | 20200103 | ￠114.3 | ￠101.6 | 25.9 | 26.52 | 10.2 | 63 | |||
PQ-1.5M | 20200104 | ￠114.3 | ￠101.6 | 25.5 | 26.1 | 10.2 | 63 |
Nco tseg:Q thiab RQ yog lub cim lag luam los ntawm Boart Longyear, ntawm no peb tau hais los pab cov neeg siv khoom xaiv cov pas nrig nkaus xwb.
Wireline Coring Laum Rods: PQ Laum Rods Txheej txheem cej luam
* Khoom siv: 4130
* Tubing
• High quality alloy steel tubing
• Concentricity tsis tu ncua, ncaj thiab kho cua sov
• Txhua lub raj muaj nyob rau hauv DCDMA qhov ntau thiab tsawg
* Xov
• Tapered, kev kawm threads (3 threads ib nti) muab yooj yim ua thiab tawg
• Load efficiency ntawm 30% muab lub zog txaus rau nruab nrab daim ntaub ntawv
* Kev kho cua sov los ntawm phab ntsa
• Muab 140% cov khoom siv zog
• Thaum tshav kub kub kho lub thawv threads ho nce xov hnav lub neej
* Case Hardening
• Kev tshawb fawb tseem ceeb, kev txhim kho thiab kev soj ntsuam hauv cheeb tsam tau ua rau cov txheej txheem hardening uas tsis sib npaug.
• Pin xov crest yog hardened rau nominal 55 HRc kom tshem tawm puas adhesion hnav.
• Tshem tawm cov kev hloov pauv ntawm cov khoom siv rov qab los uas yog qhov tshwm sim ntawm cov xov ntawm qhov sib npaug ntawm cov tawv tawv, ua rau cov nplai loj thiab sib koom ua ke
Ntim Cov Lus Qhia
PQ Drill Rods Bundle Specifications
| Qhov Loj (L x W x H) | Ntim | Qhov hnyav tag nrho | QTY |
3100x360x320mm | 0.36m3 | 3 72kg | 19pcs / hnab |
* 20 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 30 pob (210 rods)
* 40 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 45 pob (315 rods)
