Dej Swivel
CGET muaj ntau xyoo dhau los hauv kev tsim cov tub ntxhais hlau qhov chaw drilling xws li dej swivel, ezy lock overshot, casing cutters, hoisting plug, adapter subs thiab lwm yam. Dej swivel yog tsim los nrog prssure-sealed pob bearings, precision machined stainless hlau spindles, thiab lub teeb yuag aluminium lub cev. Nws yog tsim rau txhua yam khoom siv drilling thiab muaj nrog cov xov sib txawv thiab cov mountings. Nws yog siv los muab dej siab, coolant, lossis cua los ntawm qhov chaw ntawm koj lub pob zeb diamond xyaum.
Feature ntawm Dej Swivel
* Kev ua haujlwm siab thiab ua haujlwm ntev: ua nrog precision hauv av shafts.
* Txais cov ntaub ntawv zoo thiab cov xov txuas.
* Kev kho tus kheej txoj haujlwm ntawm lub foob yog ua kom ntseeg tau los ntawm kev hnav-pov thawj cov yeeb nkab thiab lub caij nplooj ntoos hlav-mounted load, muaj peev xwm hoisting.
* Yooj yim me me
* Lub teeb rau kev thauj mus los yooj yim
Muaj Qhov Loj rau Dej Swivel
BQ, HQ, NQ, 25K, 40K, compact plus water swivels are available. Peb muab universal dej swivels rau pob zeb diamond core xyaum, qhov loj ntawm peb cov dej swivels tuaj yeem txiav txim raws li cov neeg siv khoom' xav tau.

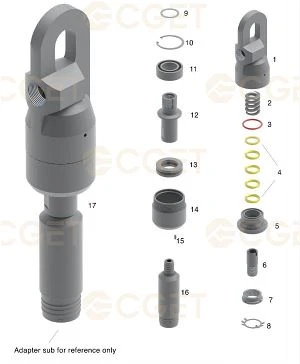

25K Universal Water Swivel
Tsis muaj | P/N | Khoom npe | Oty |
1 | NWS-01 | Swivel Cap | 1 |
2 | NWS-02 | Compression Caij nplooj ntoos hlav | 1 |
3 | NWS-03 | O-ring Ф57 * 5.5 | 1 |
4 | NWS-04 | Swivel Packing | 1 |
5 | NWS-05 | Ntim Tsev | 1 |
6 | NWS-06 | Spindle Extension | 1 |
7 | NWS-07 | Spindle txiv ntseej | 1 |
8 | NWS-08 | Xauv Washer | 1 |
9 | NWS-09 | Spacer | 1 |
10 | NWS-10 | Ntiv nplhaib | 1 |
11 | NWS-11 | Pob Bearing 3210 | 1 |
12 | NWS-12 | Spindle | 1 |
13 | NWS-13 | Pob Bearing 51211 | 1 |
14 | NWS-14 | Swivel Lub Cev | 1 |
15 | NWS-15 | Roj Fitting M6 | 1 |
16 | NWS-16 | Adapter Sub (Reference nkaus xwb) | 1 |
17 | NWS-17 | Nto Universal Dej Swivel | 1 |
Nco tseg:
ib. #20 NPT hose txuas
b. BW tod box spindle txuas rau lub cev swivel
c. Surface universal dej swivel hnyav: 12.7kg

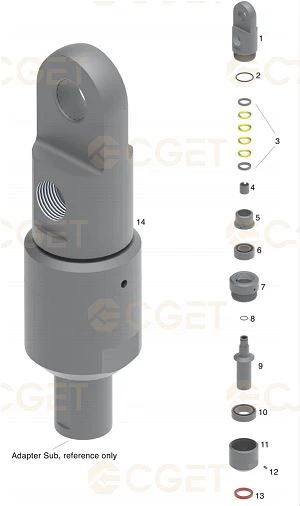

Compact Plus Water Swivel
| Tsis muaj | P/N | Khoom npe | Oty |
1 | CCP-01 | Swivel Cap | 1 |
2 | CCP-02 | O-ring Φ47.5 * 3.55 | 1 |
3 | CCP-03 | Upper Pressure Ring | 1 |
4 | CCP-04 | Hnav Tsho | 1 |
5 | CCP-05 | Ntim Cage | 1 |
6 | CCP-06 | Pob Bearing 3206A-2Z | 1 |
7 | CCP-07 | Upper Swivel Lub Cev | 1 |
8 | CCP-08 | O-ring Φ19 * 2.65 | 1 |
9 | CCP-09 | Spindle | 1 |
10 | CCP-10 | Pob Bearing 51209 | 1 |
11 | CCP-11 | Swivel Lub Cev | 1 |
12 | CCP-12 | Roj Fitting M6 | 1 |
13 | CCP-13 | Felt Seal | 1 |
14 | CCP-14 | Nto Compact Plus Dej Swivel | 1 |
Nco tseg:
ib. #16 NPT hose txuas
b. AW rod box spindle connection
c. Nto compact plus dej swivel nyhav: 7.8kg
Yuav Ua Li Cas
Hu rau peb tus neeg muag khoom rau kev pom zoo.
WhatsApp: +89-189 2131 0502
Txawb: +86-152 5025 4719
E-mail: sales@cgegtech.com
