CQ Drill Rod

CQ series drilling pas nrig yog interchangeable nrog Q series coring drilling pas nrig uas yog muaj nyob rau hauv lub thoob ntiaj teb geological kev lag luam tshawb nrhiav. CQ laum pas nrig suav nrog CQ (HQ) laum pas nrig, NCQ (NQ) laum pas nrig, BCQ (Q) laum pas nrig cov koob no. Taper threaded kev twb kev txuas yog saws los pab txhawb kev sib txuas thiab tiv thaiv daig, thiab xov nto yog hardened zoo heev kom ntev kev pab cuam lub neej ntawm xov.

Lub cev lub cev:Zoo alloy steel yeeb nkab tau txais yuav thiab 100 feem pua ​​kev xeem yog ua rau txhua yam khoom siv los xyuas kom meej concentricity, straightness thiab kho cua sov.

Xov:Taper threaded kev twb kev txuas (3 threads ib nti) yog saws los pab txhawb kev sib txuas thiab tiv thaiv xov daig. Txhua txoj xov yog nyob rau hauv qhov kev ntxhov siab, muab lub zog txaus rau cov khoom siv.

Kev kho cua sov:Tag nrho cov txheej txheem kho cua sov los txhim kho kev pab cuam lub neej ntawm rods. Cov xov ntawm ob qho kawg ntawm cov pas nrig tau txais kev kho tshwj xeeb kom muab txog 140 feem pua ​​​​ntawm cov khoom siv zog. Kev pabcuam lub neej ntawm cov xov puab txhim kho pom tseeb.

Xov Surface Hardening:Tom qab cov txheej txheem tshwj xeeb kho, cov xov txheej sab nraud hardness yog txog li 55HRC, uas ua rau kom tsis txhob "kab xov" thiab txo qhov puas thiab "kab" vim kev sib koom ntawm cov xov.

WL Drill Rods Sizes Muaj

Nco tseg:Q thiab RQ yog lub cim lag luam los ntawm Boart Longyear, ntawm no peb tau hais los pab cov neeg siv khoom xaiv cov pas nrig nkaus xwb.

Drill Rods: CQ Xov Xwm Txheej Txheem
* Khoom siv: 4130

* Tubing
• High quality alloy steel tubing
• Concentricity tsis tu ncua, ncaj thiab kho cua sov
• Txhua lub raj muaj nyob rau hauv DCDMA qhov ntau thiab tsawg

* Xov
• Tapered, kev kawm threads (3 threads ib nti) muab yooj yim ua thiab tawg
• Load efficiency ntawm 30 feem pua ​​muab lub zog txaus rau nruab nrab daim ntaub ntawv

* Kev kho cua sov los ntawm phab ntsa
• Muab 140 feem pua ​​​​ntawm cov khoom siv zog
• Thaum tshav kub kub kho lub thawv threads ho nce xov hnav lub neej

* Case Hardening
• Cov kev tshawb fawb tseem ceeb, kev txhim kho thiab kev sim hauv cheeb tsam tau ua rau cov txheej txheem tawv tawv uas tsis sib npaug.
• Pin thread crest yog hardened rau nominal 55 HRC kom tshem tawm puas adhesion hnav
• Tshem tawm cov kev hloov pauv ntawm cov khoom siv rov qab los uas yog qhov tshwm sim ntawm cov xov ntawm qhov sib npaug ntawm qhov sib npaug, ua rau kom loj scalegalling thiab sib koom ua ke.


Ceeb Toom: Tsis txhob sib xyaw peb cov pas nrig nrog lwm lub chaw tsim khoom, nws yuav ua rau muaj kev puas tsuaj loj.

Nco tseg: Txhawm rau kom paub tseeb tias qhov kev ua haujlwm ntawm lub laum pas nrig, tsis txhob sib xyaw peb cov pas nrig nrog lwm tus neeg tsim khoom ua ke, nws kuj yuav ua rau lub tshuab tsis ua haujlwm thiab kev puas tsuaj loj.

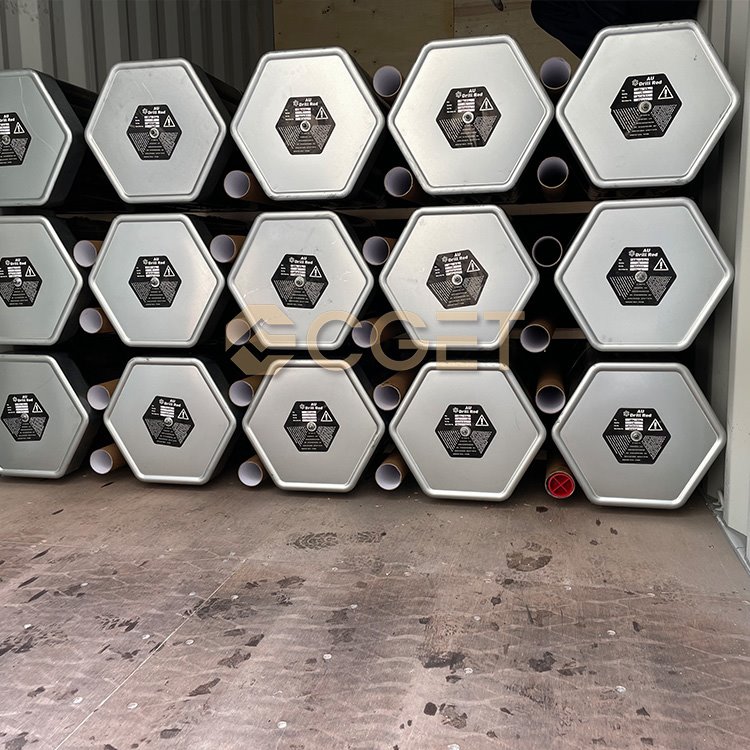

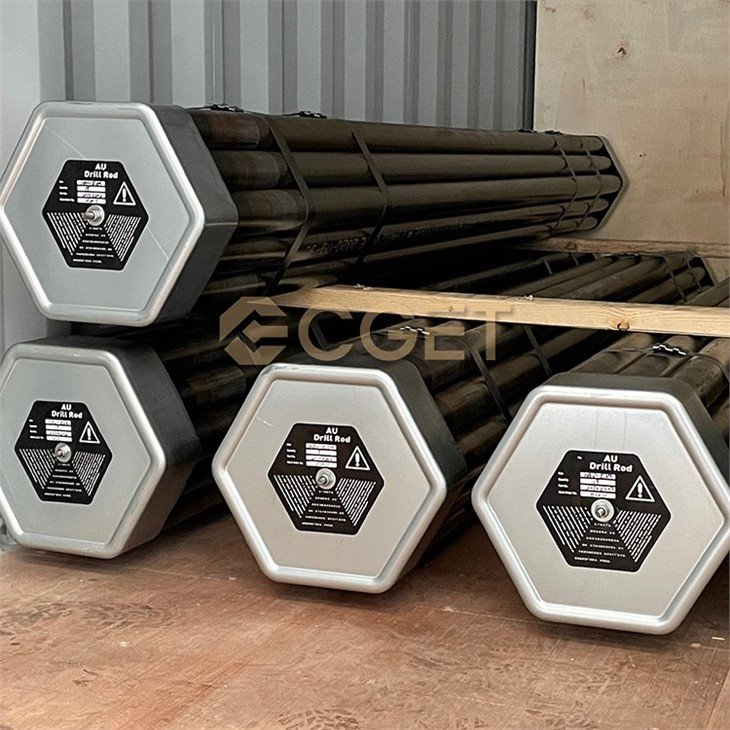

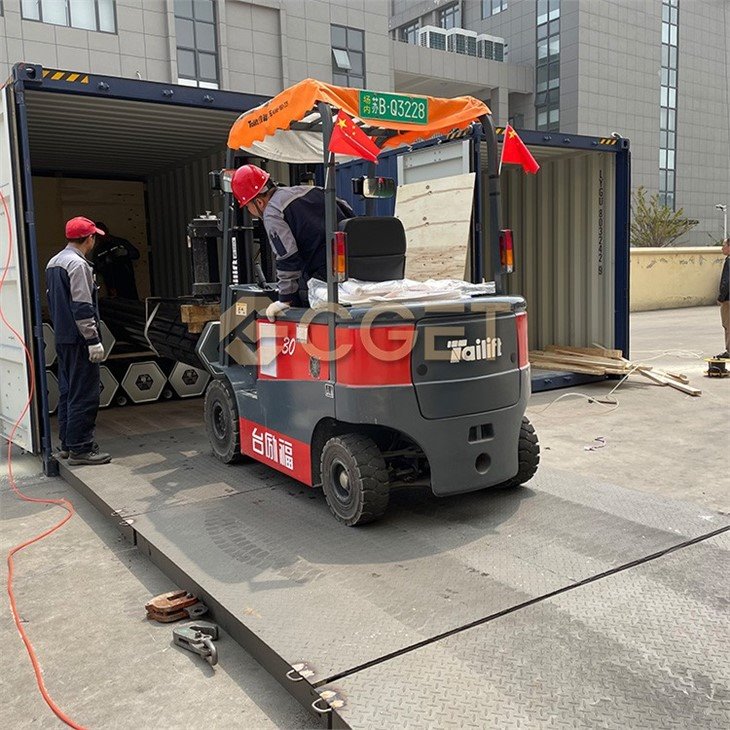

Ntim Cov Lus Qhia
BCQ (BQ) Drill Rods Bundle Specifications

* 20 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 53 pob (1007 rods)
* 40 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 68 pob (1292 rods)

NCQ (NQ) Drill Rods Bundle Specifications

* 20 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 30 pob (570 rods)
* 40 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 45 pob (855 rods)

HCQ (HQ) Drill Rods Bundle Specifications

* 20 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 20 pob (380 rods)
* 40 ft thawv load ntawm 3.0 m / 10 ft laum rods tuav 30 pob (570 rods)
