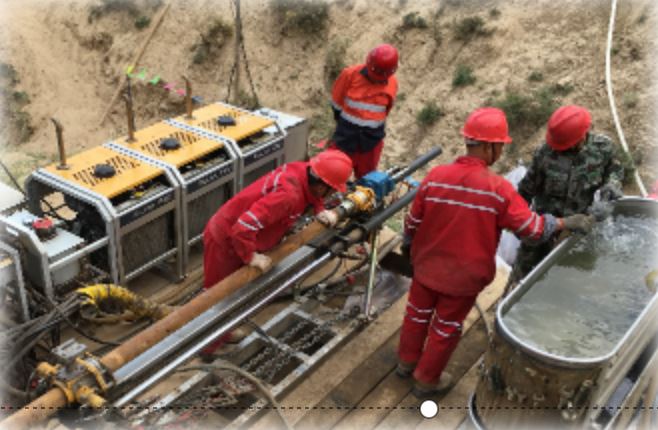

F800D work site geo quip tech wuxi china

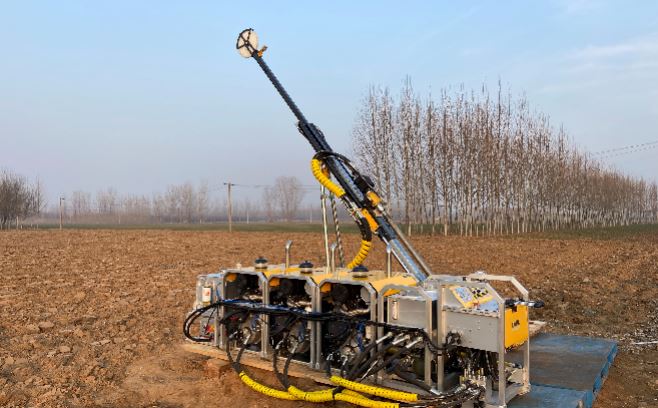

Txiv neej-Portable Laum Rig MP6D MP8D Kev Tshawb Fawb Drilling
Drill Capacity:
MP6 / MP8
BQ: 600m / 800m
NQ: 400/550 m
HQ: 180m / 220m
MP6D/MP8D Txiv neej-portable Drill Rig
CGET muaj ntau yam txiv neej-portable drilling rigs - Core'MX MP series.
Core'MX xyaum yog cov qauv tsim thiab ua los ntawm siab - lub zog aluminium fabrications, kom ntseeg tau cov qauv siab ntawm cov tawv nqaij thaum txo qhov hnyav ntawm rig. Qhov max tivthaiv hnyav 160Kg / 180Kg (F600 / F800), uas yog qhov yooj yim rau kev ua haujlwm los ntawm cov neeg ua haujlwm.
Lub laum lub compact qauv ua kom paub tseeb tias nws tuaj yeem sib sau ua ke thiab rhuav tshem tau yooj yim hauv 4mx4m platform. Frontier xyaum xyaum tau disassembled nyob rau hauv 45 feeb thiab re- positioned nyob rau hauv ib nrab hloov.
Core'MX xyaum xyaum siv lub zog-txuag thiab suab nrov-txo cov txheej txheem. Nws tsis tsuas yog tso cai rau tus neeg teb xov tooj kom xis nyob, tab sis kuj txo qhov cuam tshuam ntawm ib puag ncig ib puag ncig. Core'MX xyaum tuaj yeem thauj tau yooj yim los ntawm cov neeg ua haujlwm thiab tsis xav tau txoj kev.
Raws li hneev taw taug kev tsuas yog txwv thiab kev kho kom zoo ntawm ib puag ncig yog qhov yooj yim, qhov cuam tshuam ntawm ib puag ncig ntuj yog me me.
Thaum txoj kev - nkag mus tau txwv, kev xyaum ua haujlwm tuaj yeem ua raws li txoj kev me me los ntawm cov neeg ua haujlwm, muab cov txiaj ntsig zoo hauv ntau yam kev ua haujlwm nyuaj.
Nta

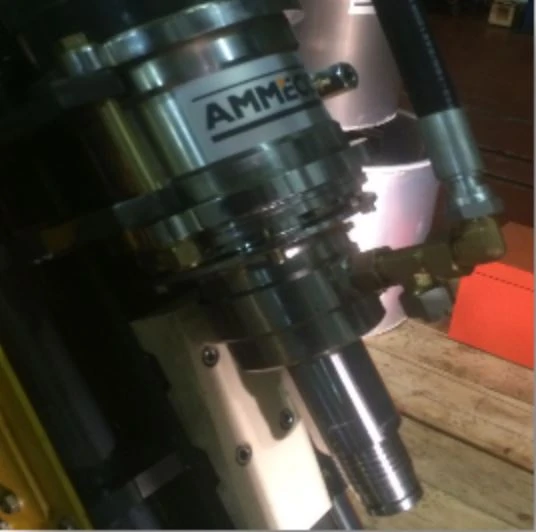

* Lub taub hau laum yog compact, sab saum toj - tsav thiab lub teeb yuag. Nrog rau kev siv lub siab thiab qis ceev hydraulic motors, lub taub hau yog haum rau kev sib txawv drilling tej yam kev mob.

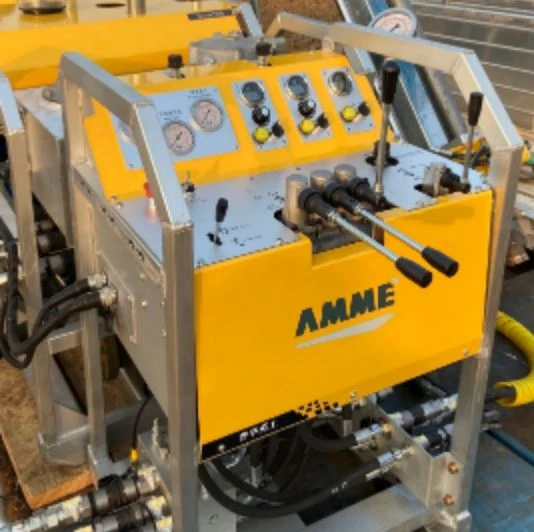

* Cov tswj vaj huam sib luag compact tsim muaj tag nrho cov fais fab thiab hydraulic tswj systems thiab cov khoom siv ua haujlwm. Tag nrho lub hwj chim pob tswj yog nruab nrab ntawm lub vaj huam sib luag uas tsis tas yuav mus thiab khiav txhua tus neeg lub cav chaw taws teeb los ntawm tus neeg teb xov tooj.
* Cov pab pawg sib koom ua ke hydraulic tswj valve siv cov cuab yeej siv niaj hnub ntawm hydraulic fais fab faib thiab kev tswj xyuas zoo ntawm drilling thiab txhawb kev ua haujlwm. Nws tseem tshem tawm cov kev pheej hmoo ntawm qhov tsis ua haujlwm thaum txhim kho kev siv hluav taws xob zoo.
* Nrog rau tus qauv tsim tshwj xeeb hauv kev lag luam, lub taub hau nqa lub taub hau nyiam qhov tshwj xeeb kom paub txog qhov tseeb - lub sijhawm hloov kho ntawm qhov sib txawv ntawm cov khoom noj khoom haus thiab cov phaj hnav, txhua lub sijhawm thaum xav tau, tso cai rau noj tsis tu ncua. Kev hloov pauv ntawm cov me me - loj hnav daim hlau yog qhov yooj yim heev los ntawm sab nraud ntawm lub tsheb thauj khoom uas tsis tas yuav tsum tau kov qhov tseem ceeb ntawm cov khoom.

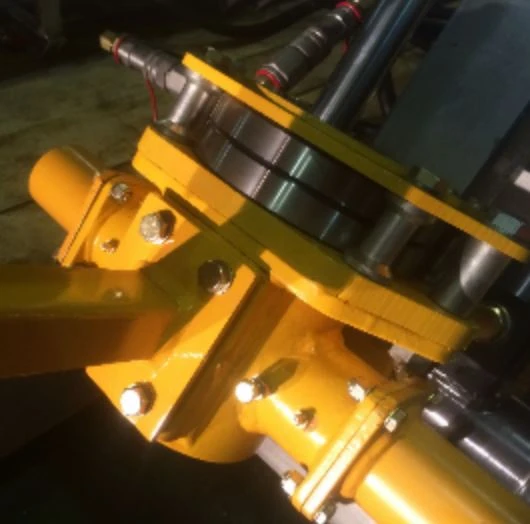

* Tus tuav pas nrig yog dual -kev taw qhia hydraulic tsav, teb ceev ceev, hnav thiab yoog raws rau kev ua haujlwm.
* Cov dej swivel yog compact tsim thiab coaxial dav hlau style, muab siab hnav resistant thiab du ua haujlwm.
|
Drilling Capacity |
MP6D |
MP8D |
|
B |
600m |
800m |
|
N |
400m |
550m |
|
H |
400m |
220m |
Lus Cim: Qhov tseeb qhov tob tob yuav raug rau qhov tshwj xeeb drilling.
|
Powerpack |
MP6D |
MP8D |
|
Cav |
D1105T x 3 |
V1505T x 3 |
|
Hwj chim |
24kw (x3) |
33kw (x3) |
|
Max RPM |
3000 rpm |
3000 rpm |
|
Hluav taws xob qhov system |
12V |
12V |
|
Hydraulic System |
MP6D |
MP8D |
|
Main twj |
21 MPa -150 l / min |
25 MPa -180 l / min |
|
Txhawb lub twj tso kua mis |
17 MPa -20 l / min |
17 MPa -20 l / min |
|
Txoj kev txias |
Cua / dej |
Cua / dej |
|
Pub Ncej |
MP6D |
MP8D |
|
Mob stroke |
1.80 m |
1.80 m |
|
Pub quab yuam |
55kn ua |
65kn ua |
|
Pullback quab yuam |
100 kN ib |
120 kN ib |
|
Drilling Angle |
45-90 |
45-90 |
|
Rub- nrawm nrawm |
114 m / min |
45-90 |
|
Qws ntev |
1.5 m |
1.5 m |
|
Lub taub hau tig |
MP6D |
MP8D |
|
Hom Tsav |
Lub cev muaj zog |
Lub cev muaj zog |
|
Txoj Kev Tsav Tsheb |
Ncej |
Ncej |
|
Loj (Max) |
114 hli |
114 hli |
|
Max RPM |
1200 rpm |
1200 rpm |
|
Max Torque |
780nm ua |
980nm ua |
|
Txoj kev zawv zawg |
Hlawv tawm |
Hlawv tawm |
|

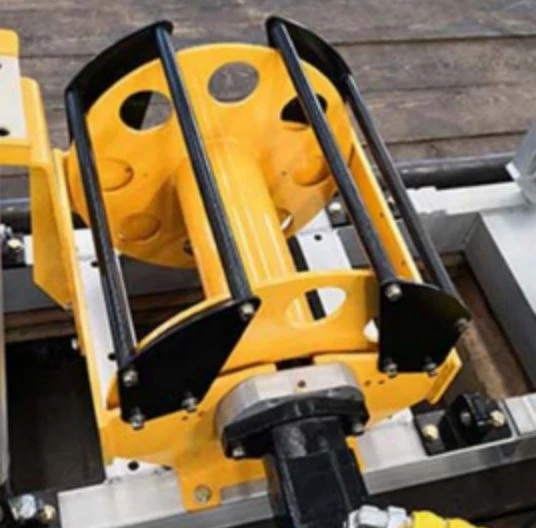

Wineline Hoist |
MP6D |
MP8D |
|
Muaj peev xwm |
800 m |
1000 m |
|
Rub - zog |
50kn ua |
50kn ua |
|
Rub- nrawm nrawm |
114 m / min |
114 m / min |
|
Qws Holder |
MP6D |
MP8D |
|
Hom |
Hydraulic pas nrig tuav |
Hydraulic pas nrig tuav |
|
Max ID |
114 hli |
114 hli |
|
Qws Loj |
OD 54mm - 114 hli |
OD 54mm - 114 hli |
|
Core ID |
OD 36mm - 85mm |
OD 36mm - 85mm |
|

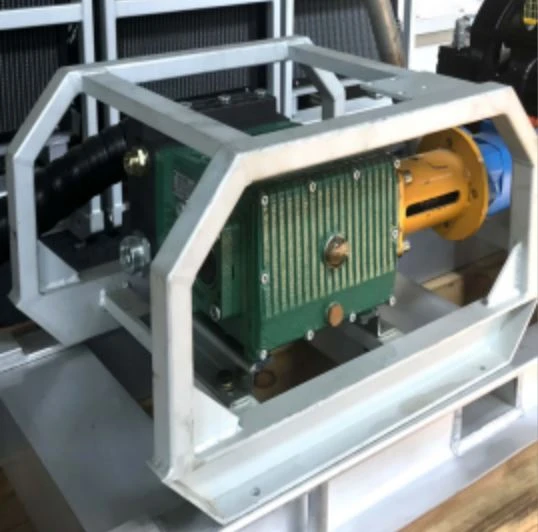

Mud Pump (Yeem) |
MP6D |
MP8D |
|
Hom |
Plunger Pump |
Plunger Pump |
|
Txoj Kev Tsav Tsheb |
Hydraulic lub cev muaj zog |
Hydraulic lub cev muaj zog |
|
Flow/Pressure |
100 hli, 70 bar |
100 hli, 70 bar |
|
Dej twj tso kua mis (yeem) |
MP6D |
MP8D |
|
Hom |
Plunger Pump |
Plunger Pump |
|
Txoj Kev Tsav Tsheb |
Diesel Cav (7.3KW) |
Diesel Cav (7.3KW) |
|
Flow/Pressure |
100 hli, 70 bar |
100 hli, 70 bar |
|
Qhov hnyav |
MP6D |
MP8D |
|
Powerpack |
160 KG x 3 |
180kg x 3 |
|
Tswj Vaj Huam Sib Luag |
120 KG |
125 KG |
|
Hydraulic tank (tag nrho) |
150 KG |
160 KG |
|
Mud twj tso kua mis |
50 KG |
50 KG |
|
Tag nrho |
1040 KWG |
1200 KG |
|
Max tus naj npawb ntawm modules |
12 |
12 |
